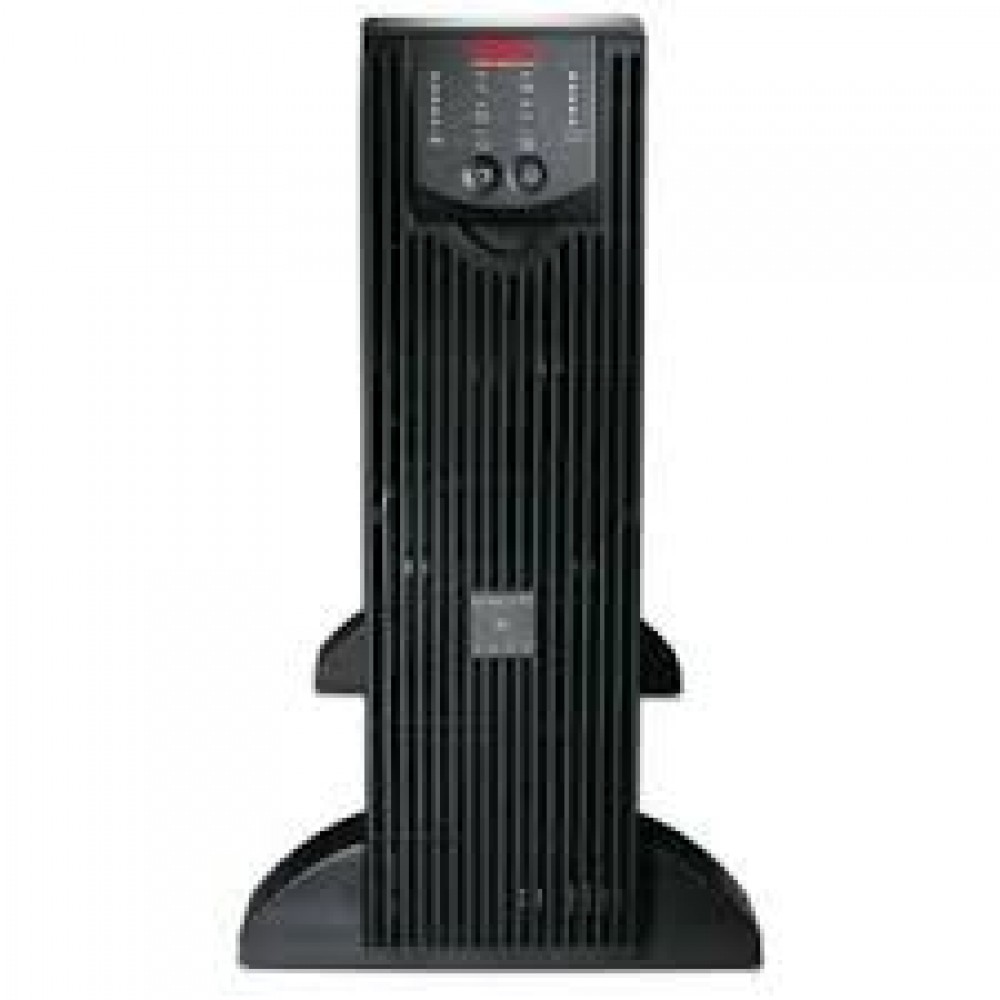

Specifications of Apc Online Ups SURT6000XLI-CC
Output power capacity
4.2 KWatts / 6.0 kVA
Max Configurable Power (Watts)
4.2 KWatts / 6.0 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
92.0 %
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(8) IEC 320 C13 (Battery Backup)
(2) IEC 320 C19 (Battery Backup)
Bypass
Internal Bypass (Automatic and Manual)
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
Hard Wire 3-wire
Input voltage range for main operations
160 - 280 V
Input voltage adjustable range for mains operation
100 - 280 V
Efficiency at Full Load
92.0 %
Other Input Voltages
220, 240
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
2
RBC Quantity
1
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
1056
Extended Run Options
APC-Smart-UPS-RT-6000VA-230V-Harsh-Environment
Runtime
View Runtime Graph
Interface Port(s)
DB-9 RS-232 , RJ-45 10/100 Base-T , Smart-Slot
Pre-Installed SmartSlotâ„¢ Cards
AP9631
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Surge energy rating
555J Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Maximum Height
432 , 43.2 cm
Maximum Width
130 , 13.0 cm
Maximum Depth
660 , 66.0 cm
Rack Height
3 U
Net Weight
54.55 kg
Shipping weight
63.64 kg
Shipping Height
347 , 34.7 cm
Shipping Width
603 , 60.3 cm
Shipping Depth
980 , 98.0 cm
Color
Black
Units per Pallet
6.0
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95% no %
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95% no %
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
55.0 dBA
Online thermal dissipation
1221.0 BTU/hr
Protection Class
IP 20
Approvals
C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE
Standard warranty
2 years repair or replace, optional on-site warranties available, optional extended warranties available
RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Battery Directive
Compliant
Battery Notes
ts_Battery_Notes
