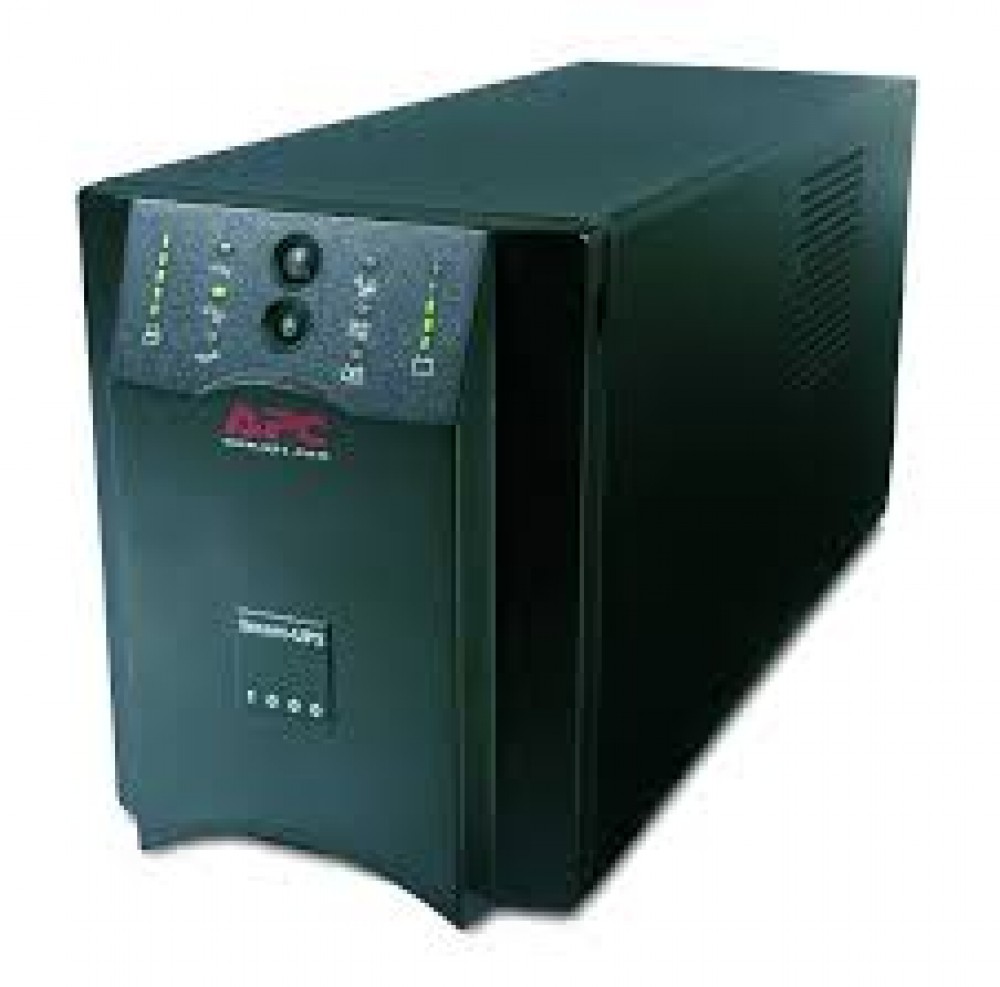

Specifications of APC SUA1000I Offline UPS 1000VA
Output power capacity
670 Watts / 1.0 kVA
Max Configurable Power (Watts)
670 Watts / 1.0 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Output Connections
(8) IEC 320 C13 (Battery Backup)
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage adjustable range for mains operation
151 - 302 V
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time
3 hour(s)
Replacement Battery
RBC6
RBC Quantity
1
Battery Volt-Amp-Hour Capacity
264
Runtime
View Runtime Graph
Interface Port(s)
DB-9 RS-232 , SmartSlot , USB
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rating
320 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Maximum Height
216 , 21.6 cm
Maximum Width
170 , 17.0 cm
Maximum Depth
439 , 43.9 cm
Net Weight
18.86 kg
Shipping weight
20.91 kg
Shipping Height
381 , 38.1 cm
Shipping Width
330 , 33.0 cm
Shipping Depth
584 , 58.4 cm
Units per Pallet
24.0
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
41.0 dBA
Online thermal dissipation
100.0 BTU/hr
RoHS
Compliant
REACH
REACH: Contains No SVHCs
