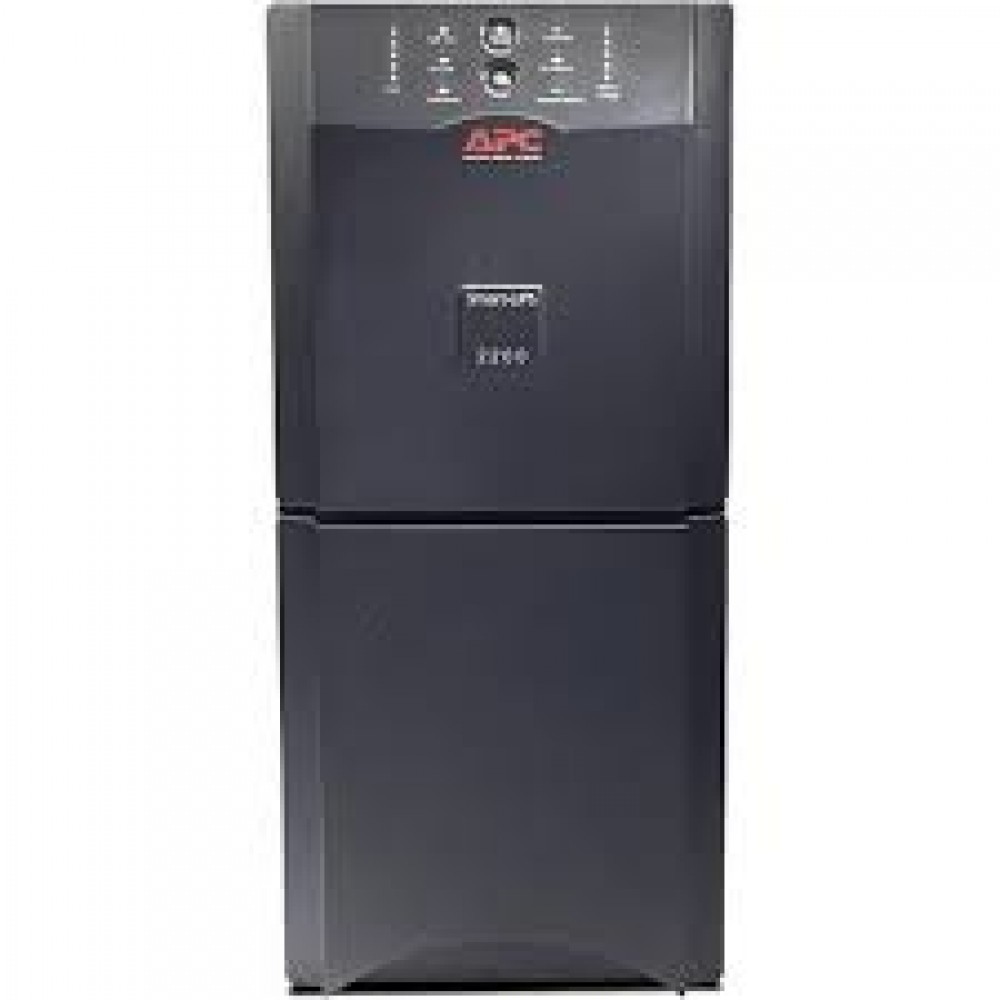

Specifications of APC SUA2200I Offline UPS 2200VA
Output power capacity
1.98 KWatts / 2.2 kVA
Max Configurable Power (Watts)
1.98 KWatts / 2.2 kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
90.0 %
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(8) IEC 320 C13 (Battery Backup)
(1) IEC 320 C19 (Battery Backup)
Transfer Time
2ms typical
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Input voltage adjustable range for mains operation
151 - 302 V
Efficiency at Full Load
90.0 %
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time
3 hour(s)
Replacement Battery
RBC55
RBC Quantity
1
Battery Volt-Amp-Hour Capacity
816
Runtime
View Runtime Graph
Interface Port(s)
DB-9 RS-232 , SmartSlot
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rating
365 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Maximum Height
432 , 43.2 cm
Maximum Width
196 , 19.6 cm
Maximum Depth
544 , 54.4 cm
Net Weight
50.91 kg
Shipping weight
65.0 kg
Shipping Height
700 , 70.0 cm
Shipping Width
380 , 38.0 cm
Shipping Depth
760 , 76.0 cm
Units per Pallet
3.0
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
45.0 dBA
Online thermal dissipation
275.0 BTU/hr
RoHS
Compliant
REACH
REACH: Contains No SVHCs
